Feature | Details |
---|---|
Model | MikroTik CRS504-4XQ-IN |
Product Code | CRS504-4XQ-IN |
Architecture | ARM 64bit |
CPU | AL32400 4-core, 1.2 GHz |
CPU Threads | 4 |
RAM Size | 4 GB DDR4 |
Storage | 128 MB NAND |
Operating System | RouterOS v7 (Default), SwitchOS |
Switch Chip Model | Marvell Prestera ALDRIN2 |
Ports | 4 × 100 Gigabit QSFP28 Ethernet ports |
Ethernet Speed Support | 40 Gbps / 100 Gbps per port |
Max Throughput | Up to 400 Gbps aggregated |
Management Port | 1 × 1G Ethernet port |
USB Port | 1 × USB Type-A |
Serial Console | RJ45 |
Cooling | 2 × Redundant hot-swappable fans |
Power Supply | Dual redundant internal PSU |
Max Power Consumption | 49 W |
Dimensions | 320 × 185 × 44 mm (1U rackmount) |
Operating Temperature | -20°C to +60°C |
Certification | CE, EAC, ROHS |
Mounting | Desktop or 1U rackmount (brackets included) |
Features | L2/L3 Hardware Offloading, Jumbo Frames, VLAN, ACL, Traffic Monitoring |

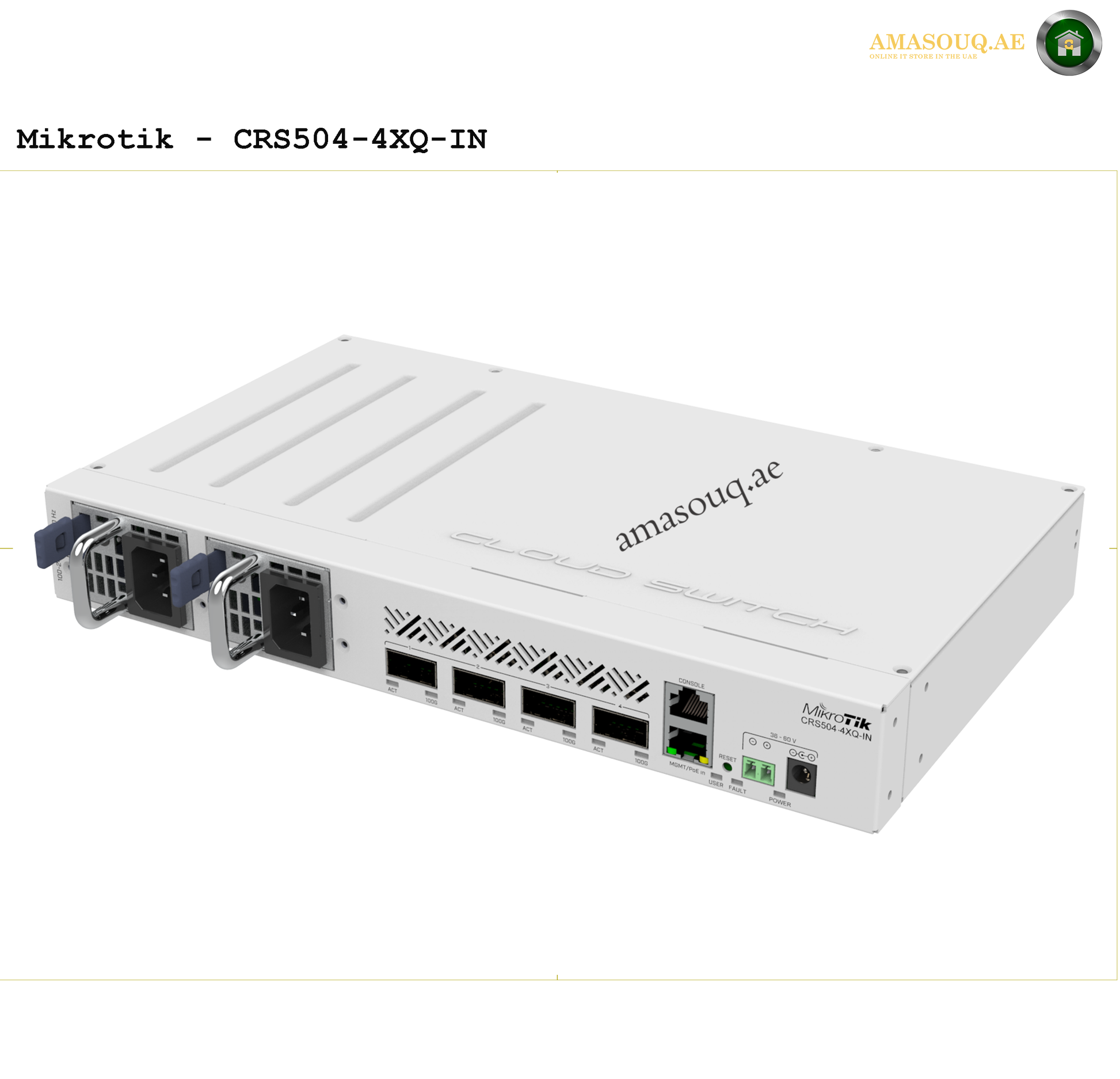

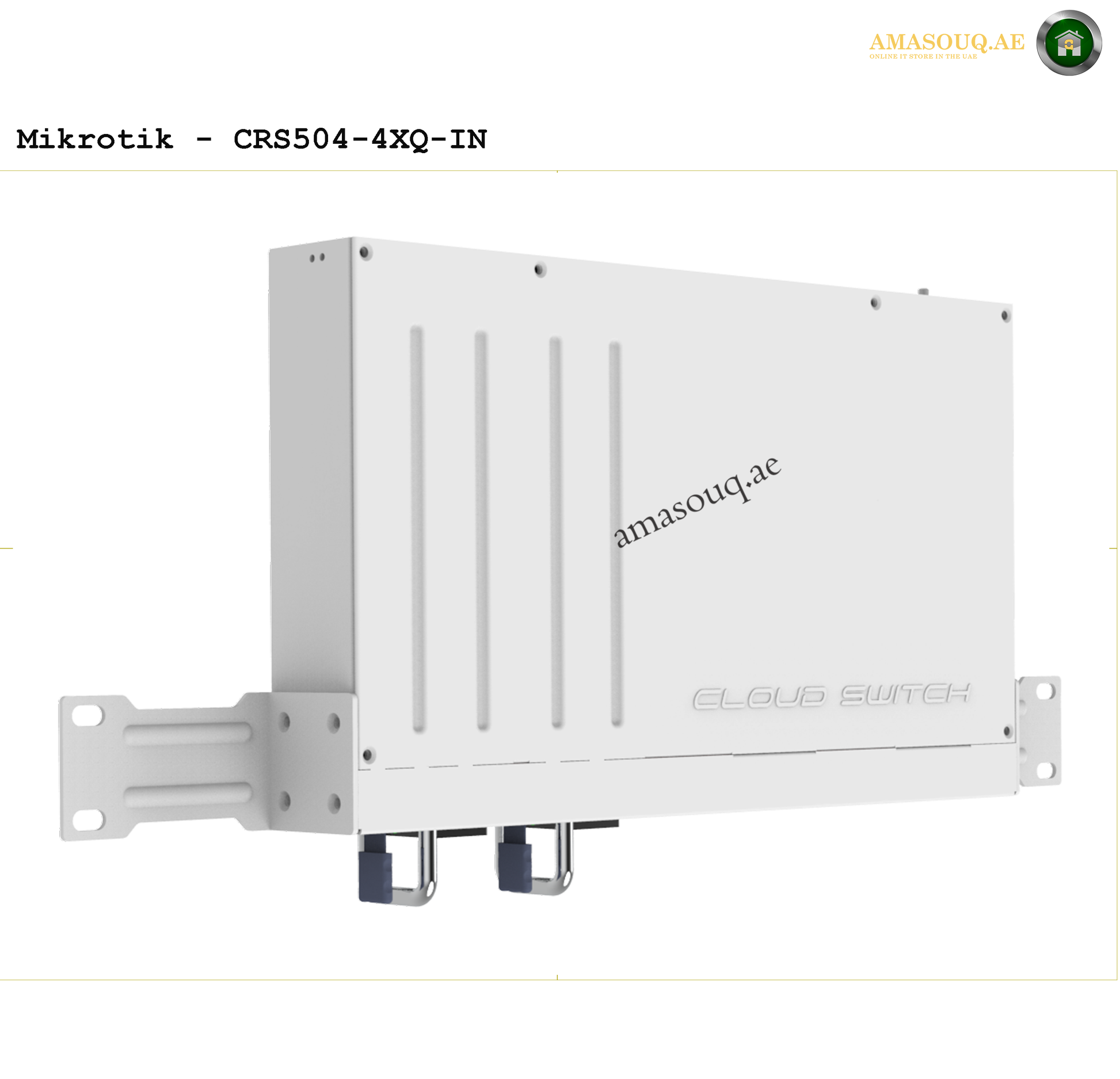

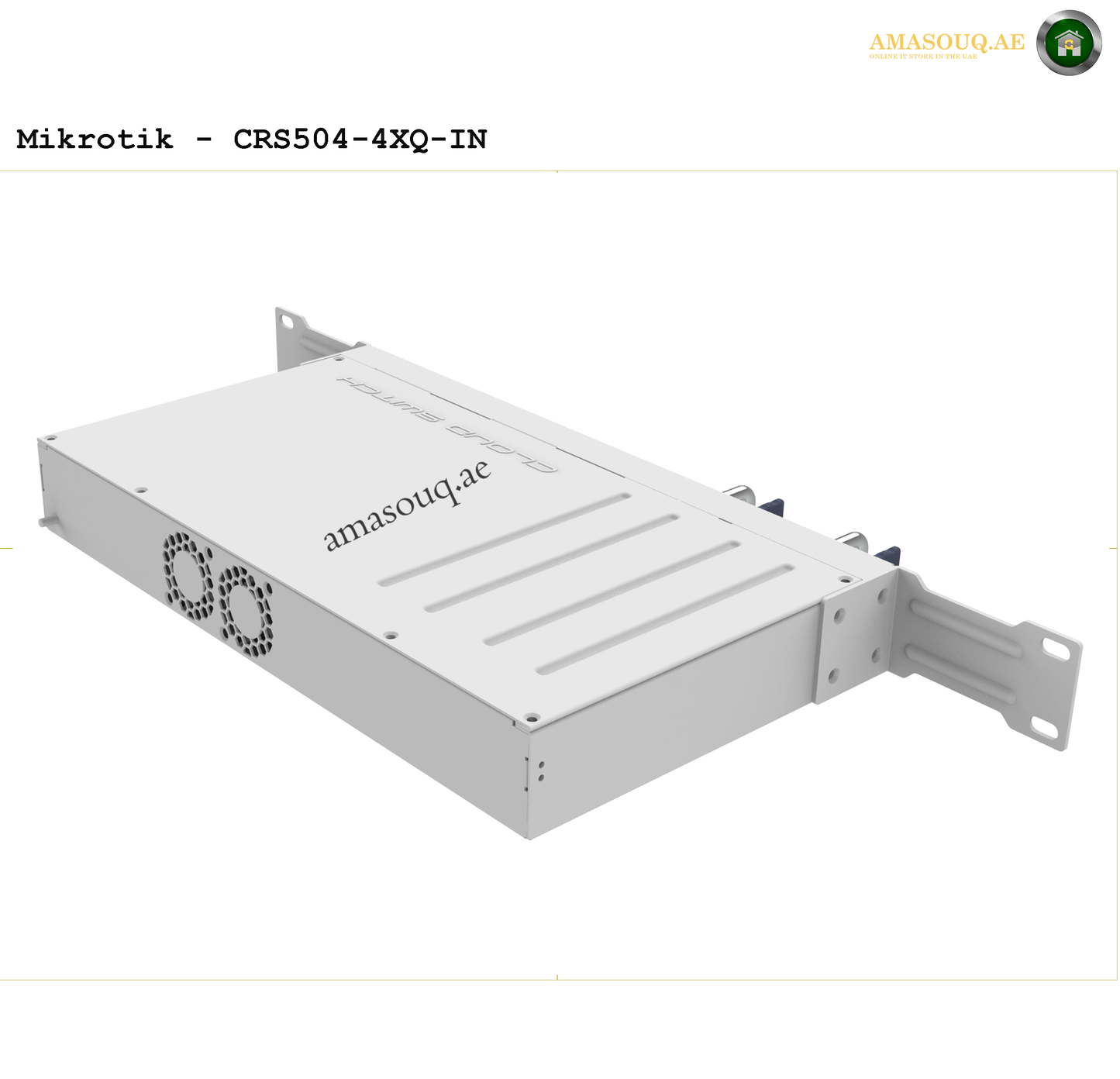

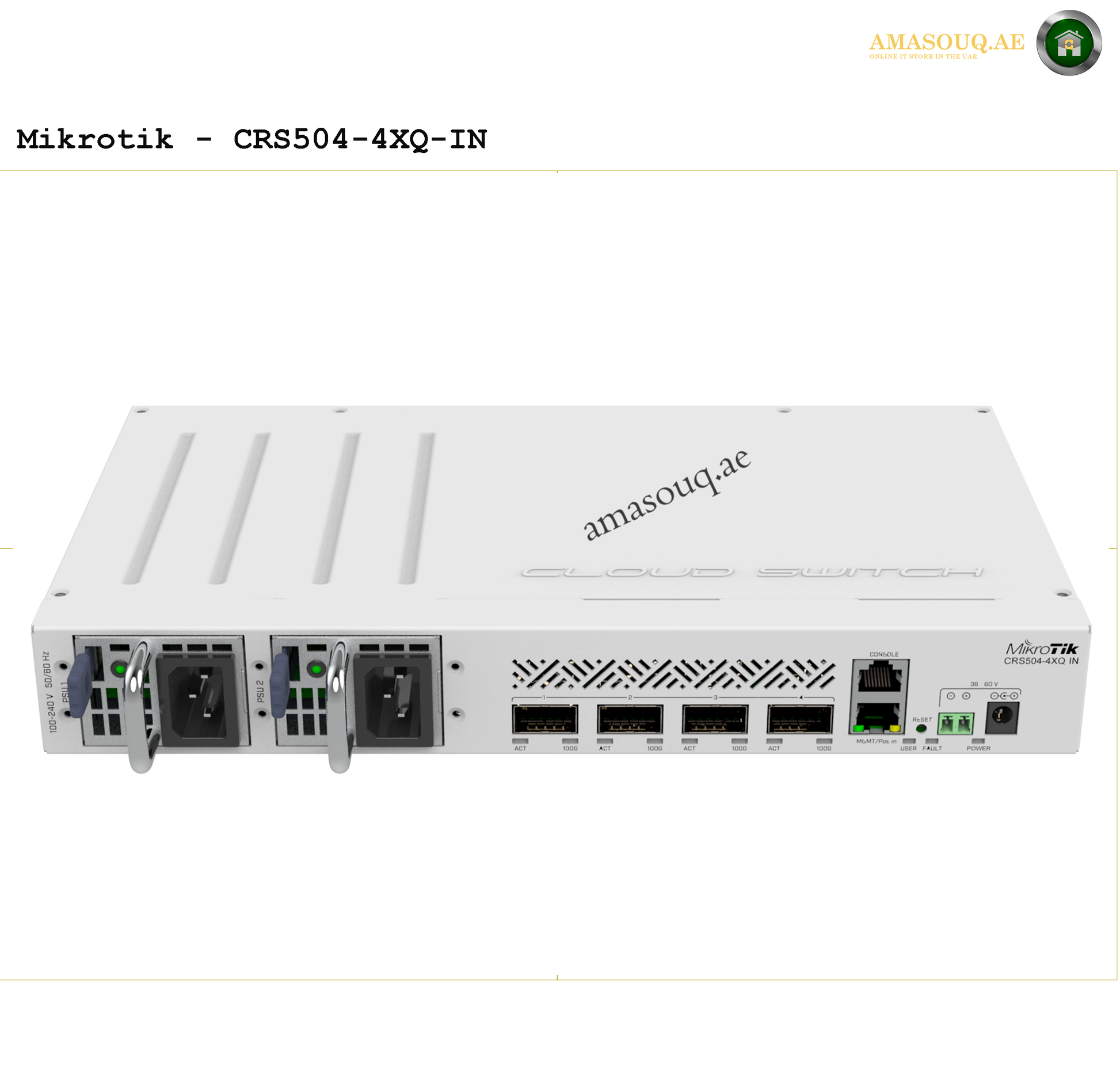

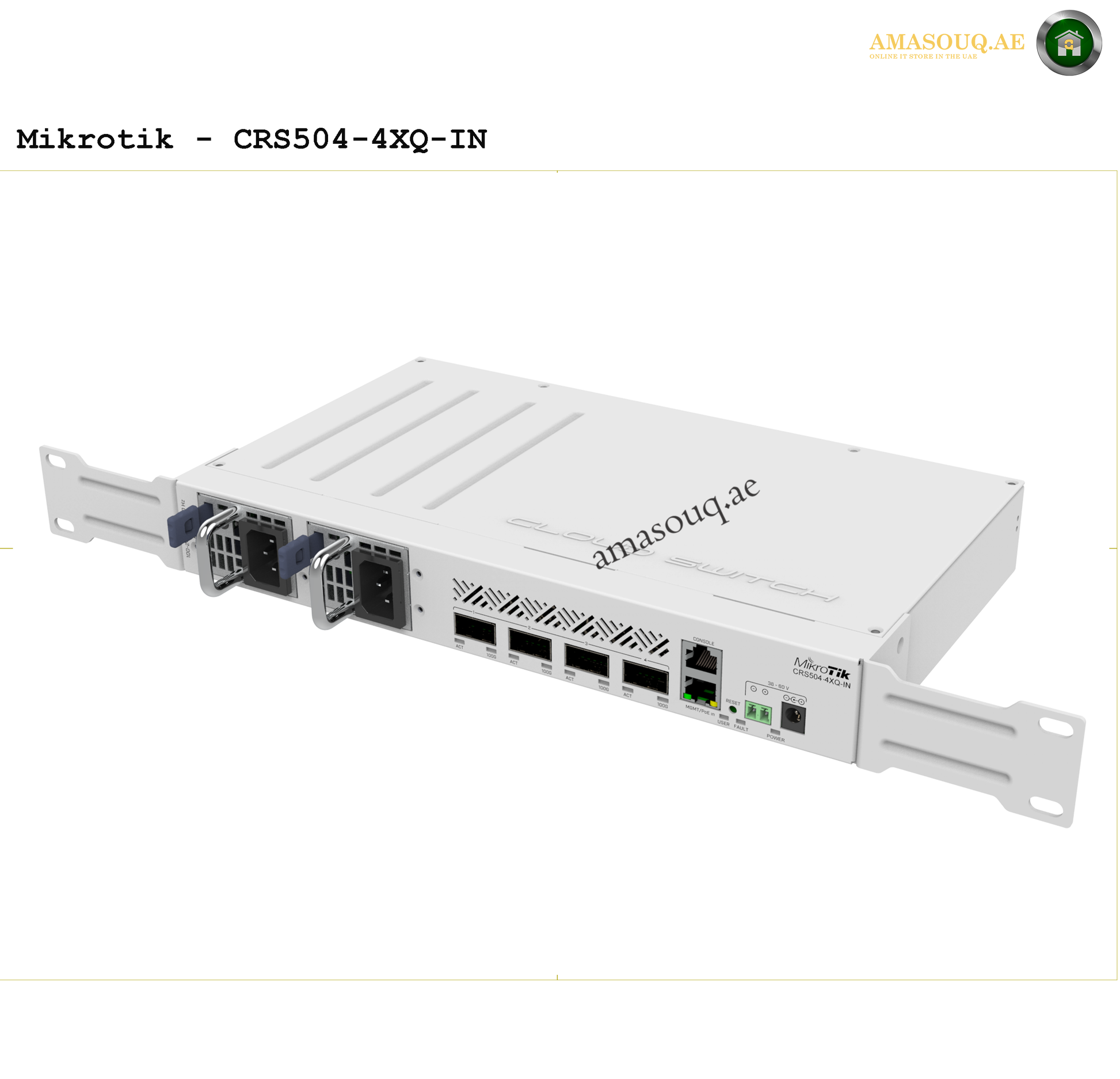

The MikroTik - CRS504-4XQ-IN is a powerful 4-port 100G cloud router switch designed to meet the demands of high-speed, enterprise-level networking. This device offers exceptional performance with ultra-fast 100G SFP+ ports, making it ideal for data centers, ISPs, and businesses requiring robust and scalable network infrastructure. Its compact form factor and advanced RouterOS provide versatile routing and switching capabilities, ensuring reliable and efficient connectivity.
Whether you need to optimize your network backbone or build a high-capacity core switch, the CRS504-4XQ-IN delivers the speed and flexibility needed to keep your operations running smoothly. Perfect for environments where speed, reliability, and advanced features matter most.
Key Features
4 × 100G QSFP28 high-speed ports for ultra-fast data transfer
ARM 64-bit quad-core 1.7 GHz CPU for powerful processing
4 GB RAM ensures smooth multitasking and performance
1.6 Tbps switching capacity for enterprise-grade networking
RouterOS Level 6 License with advanced routing & switching features
Compact 1U rackmount design with active cooling (fan)
Energy-efficient with approx. 50W power consumption
Ideal for data centers, ISPs, and high-demand business networks
What’s in the Box:
MikroTik CRS504-4XQ-IN Router Switch
Power Cord
Rackmount Kit
Quick Start Guide
Best Selling Points
Ultra-fast 4 × 100G QSFP28 ports deliver blazing data speeds for demanding networks.
Powerful quad-core 1.7 GHz ARM CPU ensures smooth and reliable performance.
High switching capacity of 1.6 Tbps supports large-scale enterprise operations.
Comes with advanced RouterOS Level 6 for versatile routing and switching features.
FAQ
What kind of ports does the CRS504-4XQ-IN have?
It features 4 × 100G QSFP28 ports for ultra-high-speed data connectivity.
Is this device suitable for enterprise networks?
Yes, it offers a powerful CPU, high switching capacity, and advanced RouterOS features ideal for enterprise and data center use.
What operating system does it use?
The CRS504-4XQ-IN runs MikroTik’s RouterOS with a Level 6 license for advanced routing and switching.
Can it be rack-mounted?
Yes, it comes with a 1U rackmount design and included rackmount kit.
What is the power consumption?
Approximately 50 watts, making it energy efficient for its performance class.
