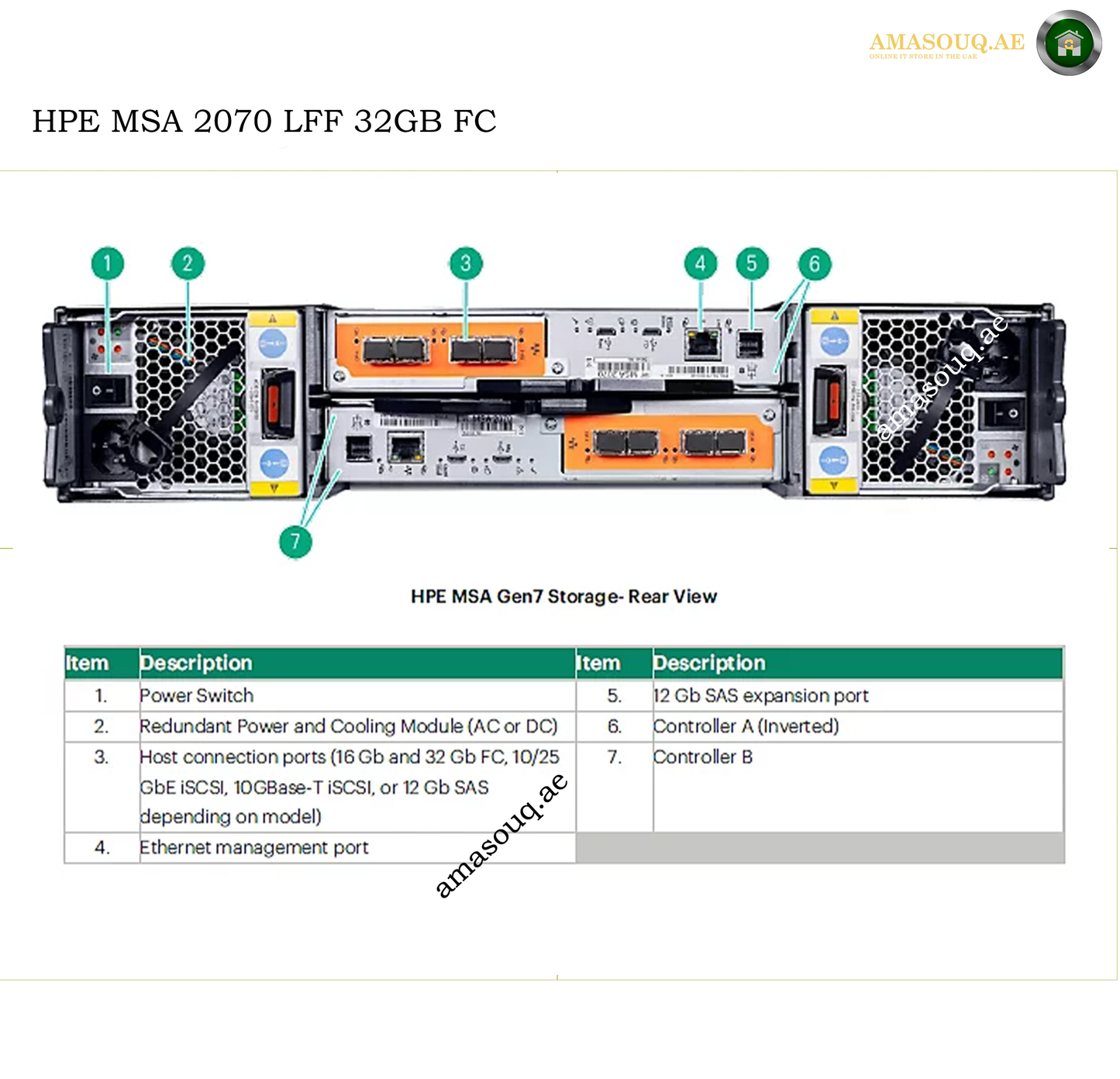

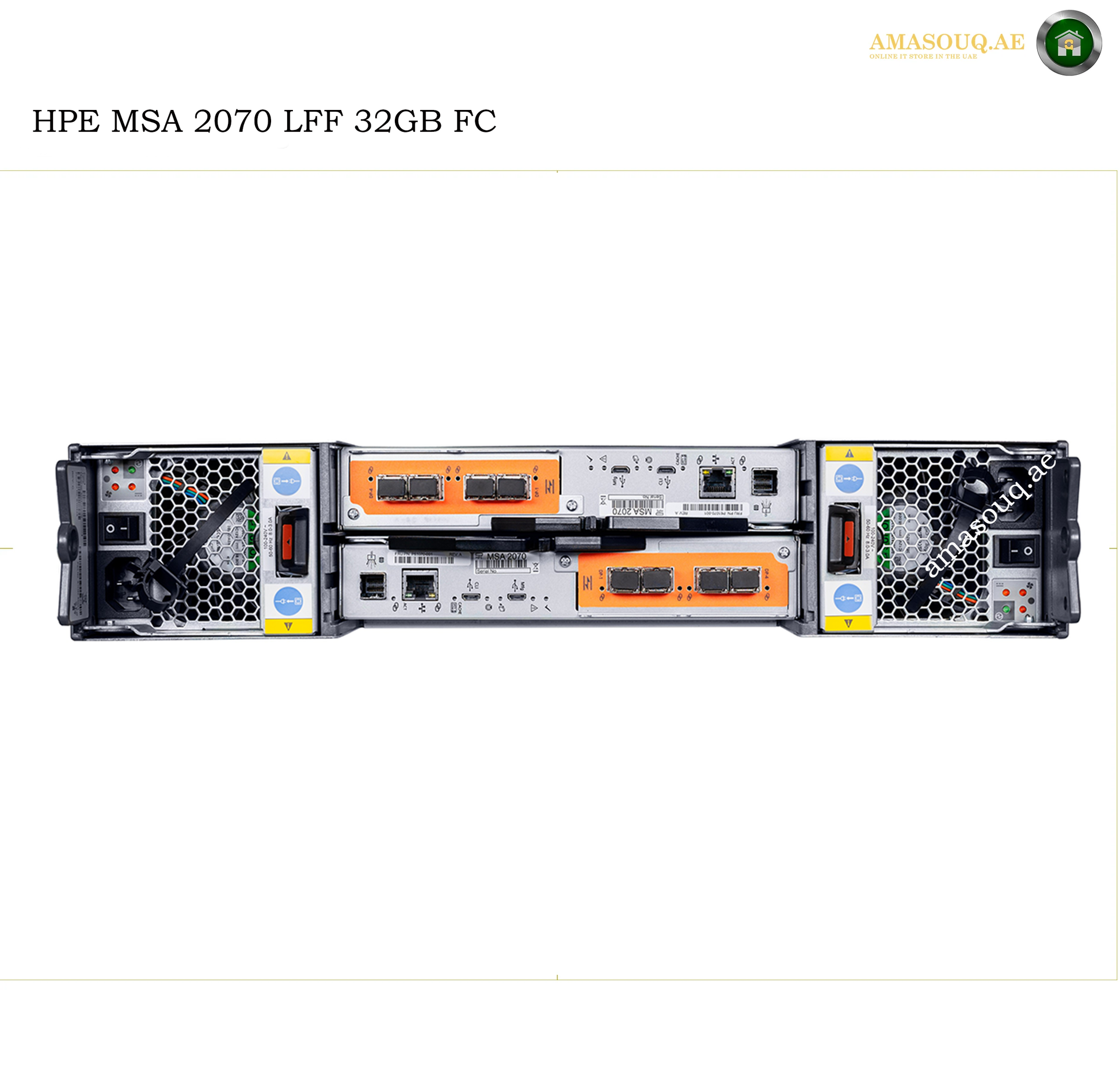

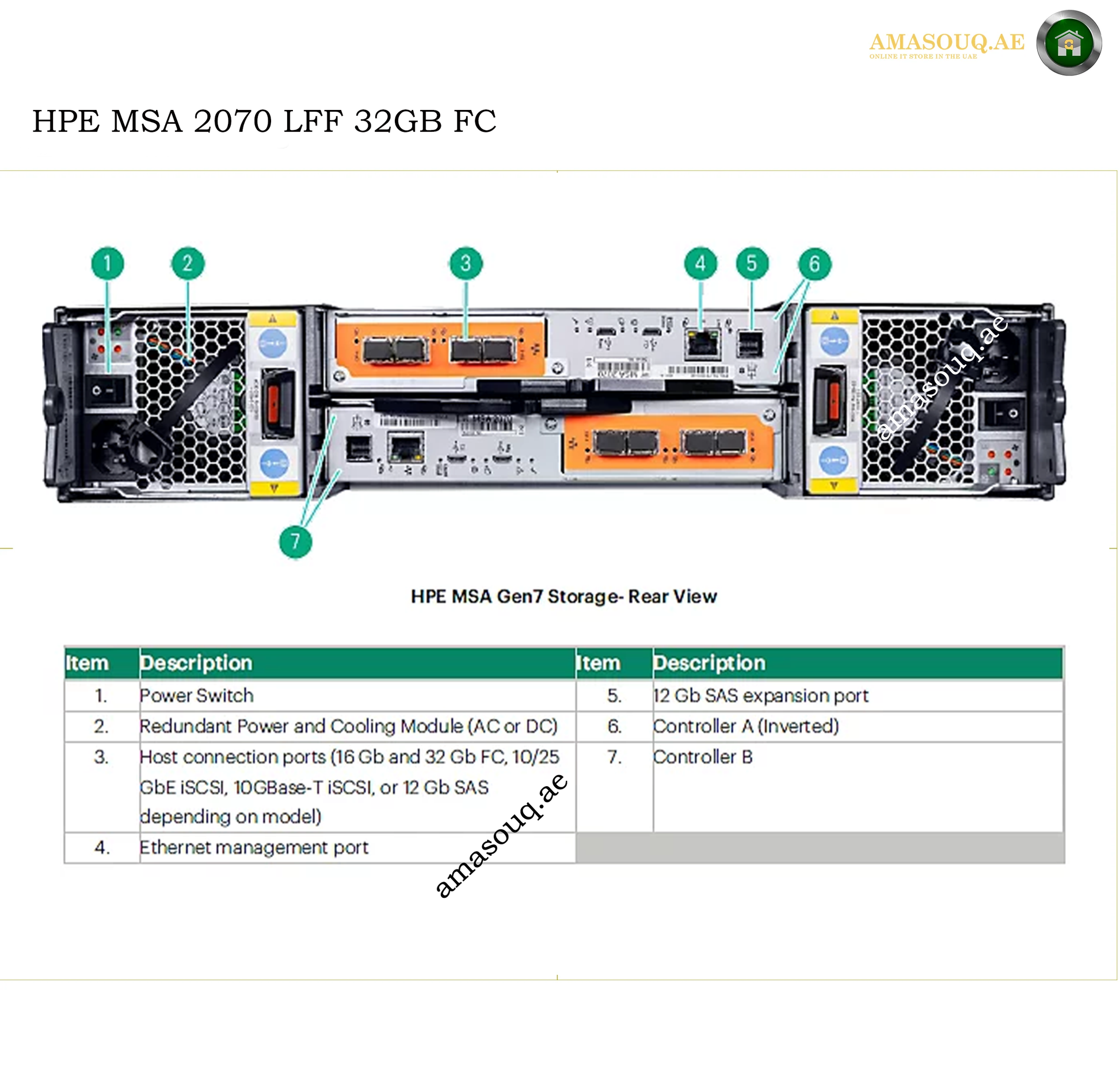

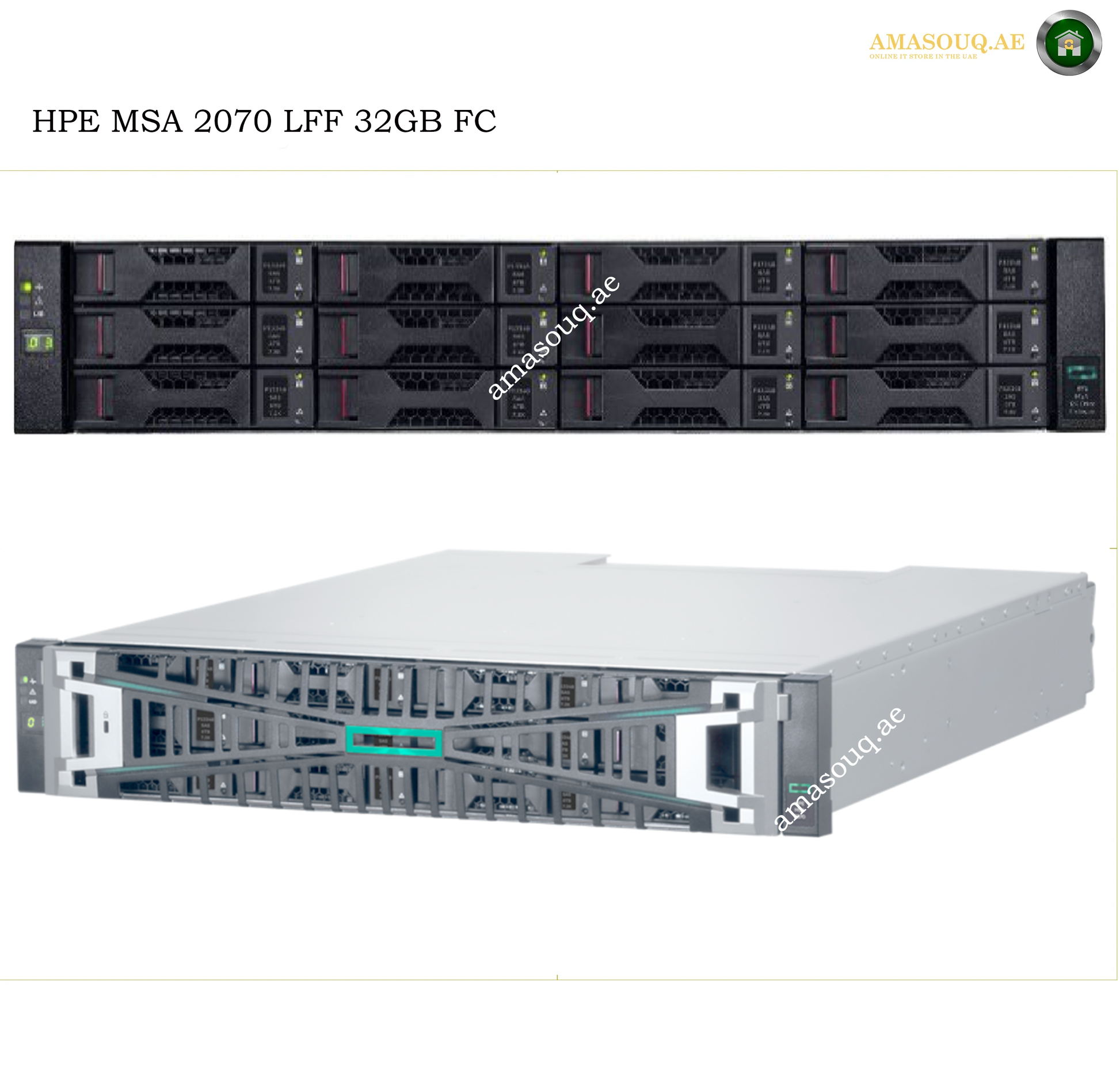

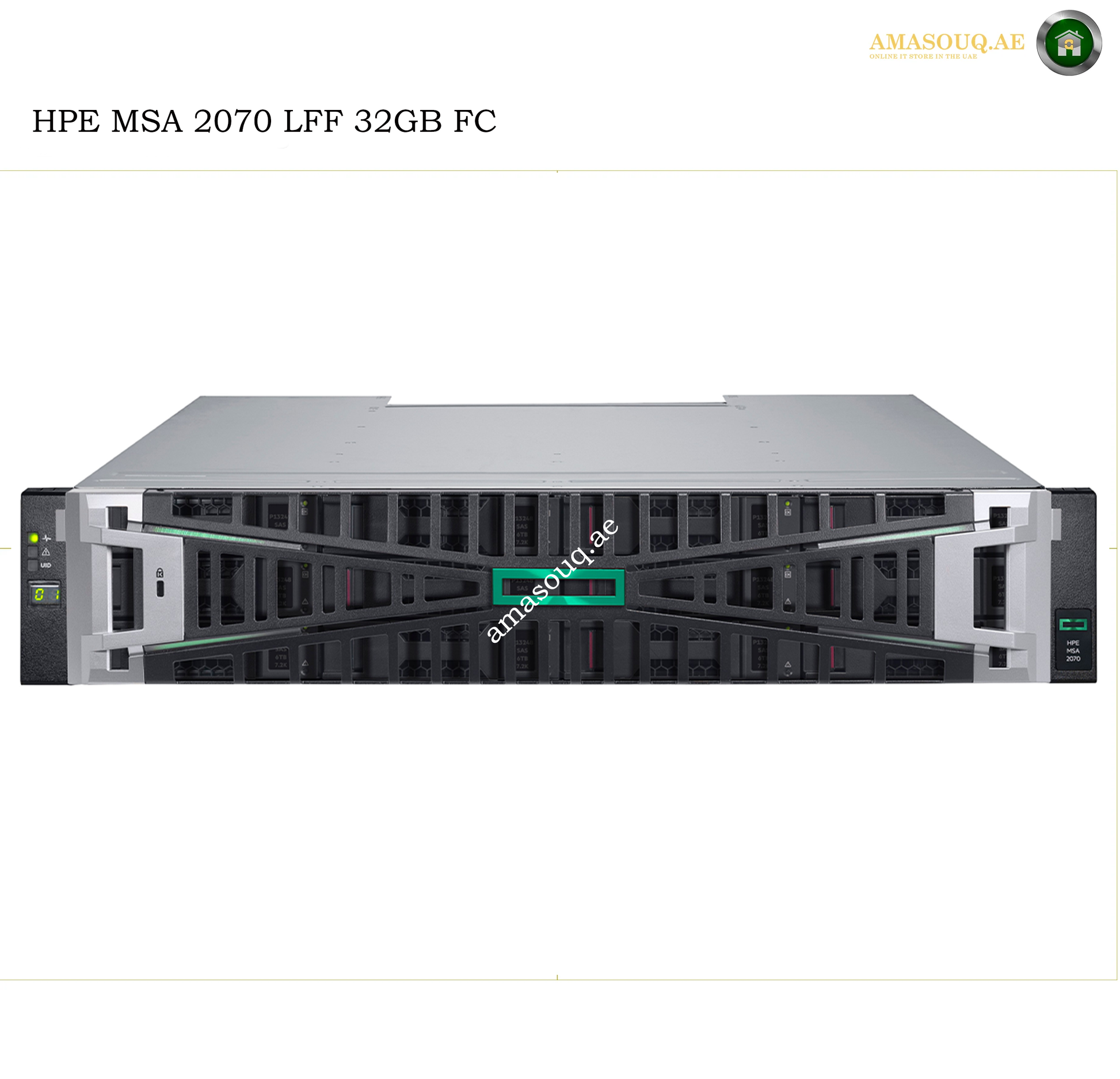

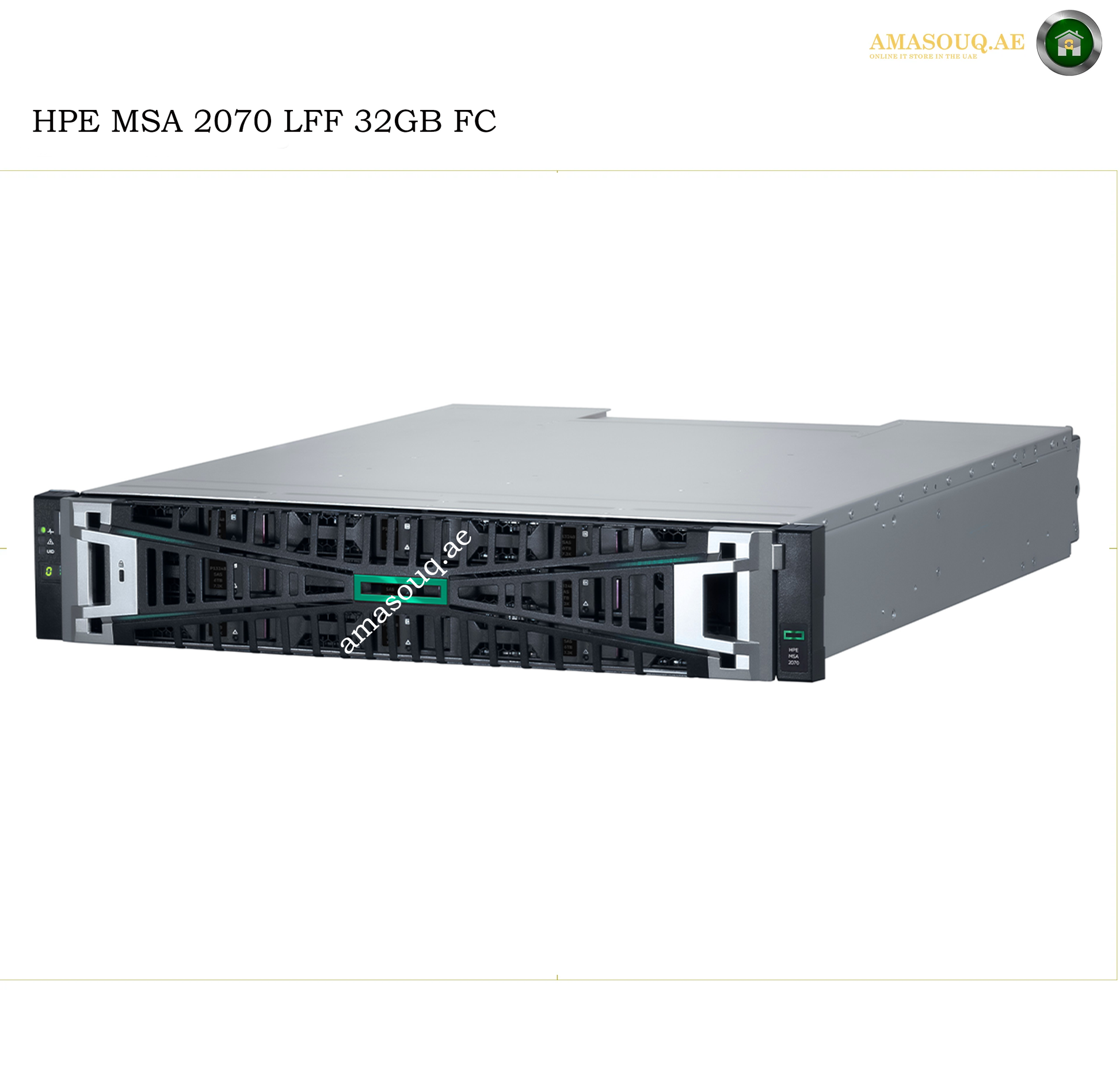

HPE MSA 2070 32Gb Fibre Channel LFF Storage S3T79A is a 2U Gen7 SAN array with dual 32Gb FC 4-port controllers, 12 LFF drive bays, dual 580W redundant power supplies and scalable storage expansion.
48GB data/read-write cache + system memory per array
Up to 8.34TB maximum read cache per array using supported read-cache configurations
Storage Management
HPE MSA Storage Management Utility v4
Web-based management
Guided configuration
Storage provisioning
RAID/pool management
Volume management
Snapshot management
Performance monitoring
RESTful API
Redfish
Swordfish
Command Line Interface (CLI)
HPE MSA Health Check
System health
Configuration
Firmware
Storage performance
Best-practice recommendations
Power Supply
2 × 580W redundant power supplies
Expansion Enclosures
LFF - 2U 12-drive LFF expansion enclosure
SFF -2U 24-drive SFF expansion enclosure
Supported Operating Systems
Microsoft Windows Server
VMware vSphere
Red Hat Linux
SUSE SLES
Thin Provisioning & Virtual Storage
Thin Provisioning
Space Reclamation
Thin Rebuild
Volume Copy
Snapshots
Remote Snap
Automated Tiering
The system supports up to:
512 volumes
512 snapshots
512 hosts
1,024 initiators
Self-Encrypting Drives
The MSA 2070 supports self-encrypting HDDs and SSDs (SEDs).
Warranty
3-Year Limited Warranty
Complete Technical Specifications
Field
Specification
Manufacturer
HPE
Product Family
MSA Gen7
Series
MSA 2070
Model
MSA 2070 LFF
Part Number
S3T79A
Product Name
HPE MSA 2070 32Gb Fibre Channel LFF Storage
Product Type
SAN Storage Array
Generation
Gen7
Form Factor
2U Rack Mount
Drive Form Factor
LFF 3.5"
Base Drive Bays
12 × LFF
Included Drives
None
Host Interface
32Gb Fibre Channel
Controllers
2 × 32Gb FC 4-Port
Ports per Controller
4
Total Host Ports
8
Transceivers Included
No
Storage Media
LFF SSD / SAS HDD
Maximum LFF Drives
Up to 120 with expansion
Expansion Enclosures
Up to 9
Maximum Raw Capacity
Up to 2.88 PB all-LFF
Data Protection
MSA-DP+
RAID
0 / 1 / 5 / 6 / 10 / MSA-DP+
Automated Tiering
Performance / Standard / Archive
Data Cache + System Memory
48GB per array
Maximum Read Cache
8.34TB
Management
MSA Storage Management Utility v4
Management API
REST / Redfish / Swordfish
CLI
Yes
Health Monitoring
HPE MSA Health Check
Online Firmware Update
Yes
SED Support
Yes
Power Supplies
2 × 580W
PSU Configuration
Redundant
Operating Systems
Windows Server / VMware vSphere / Red Hat Linux / SUSE SLES
Energy Star
Yes
Warranty
3-Year Limited
Warranty Service
Parts exchange, next-business-day delivery
What is included with S3T79A?
Included:
HPE MSA 2070 2U LFF chassis
2 × 32Gb Fibre Channel 4-port controllers
2 × 580W redundant AC power supplies
Rack-mount kit
PDU power cords
Not included:
❌ Storage drives
❌ Fibre Channel SFP transceivers
