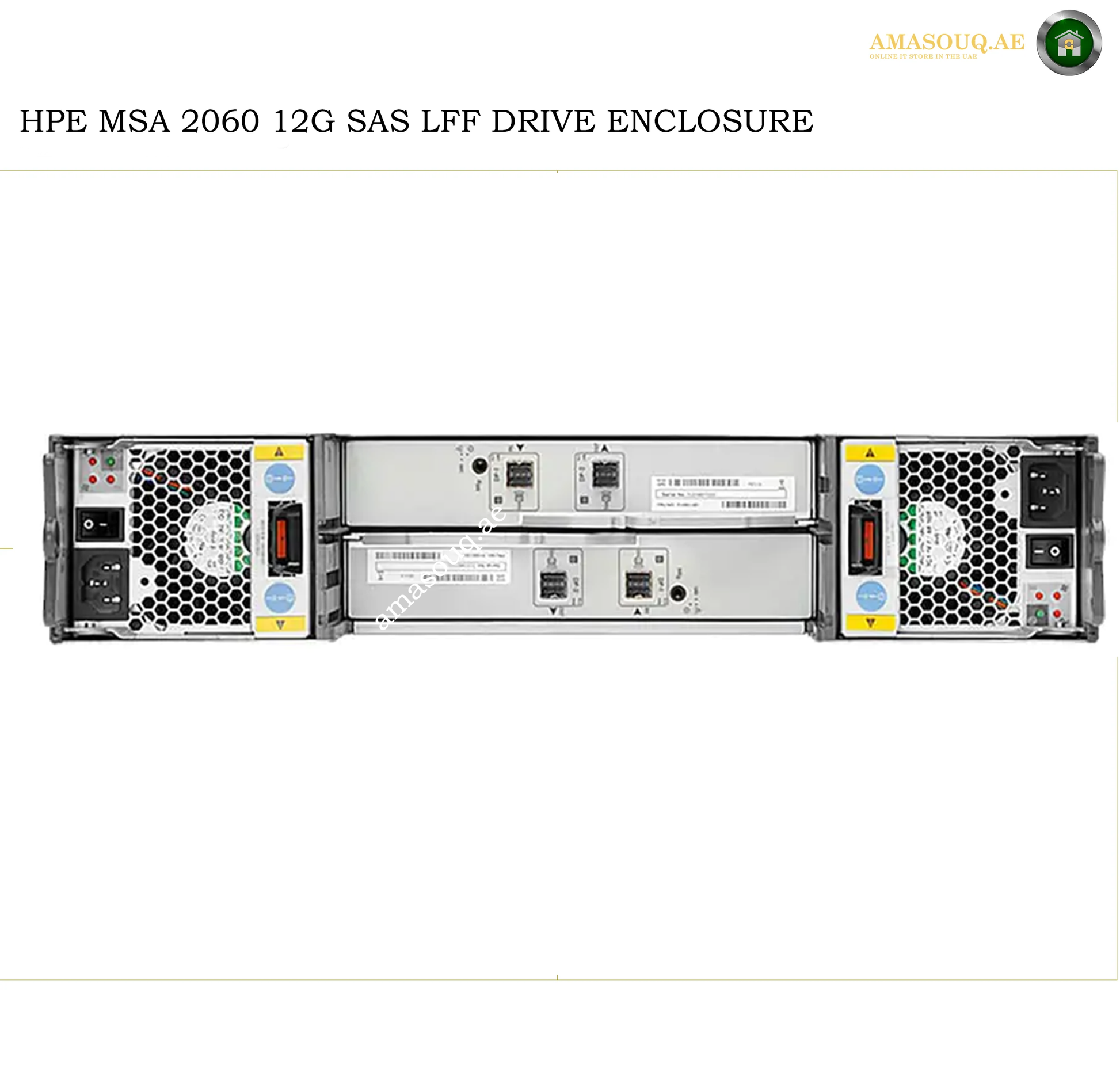

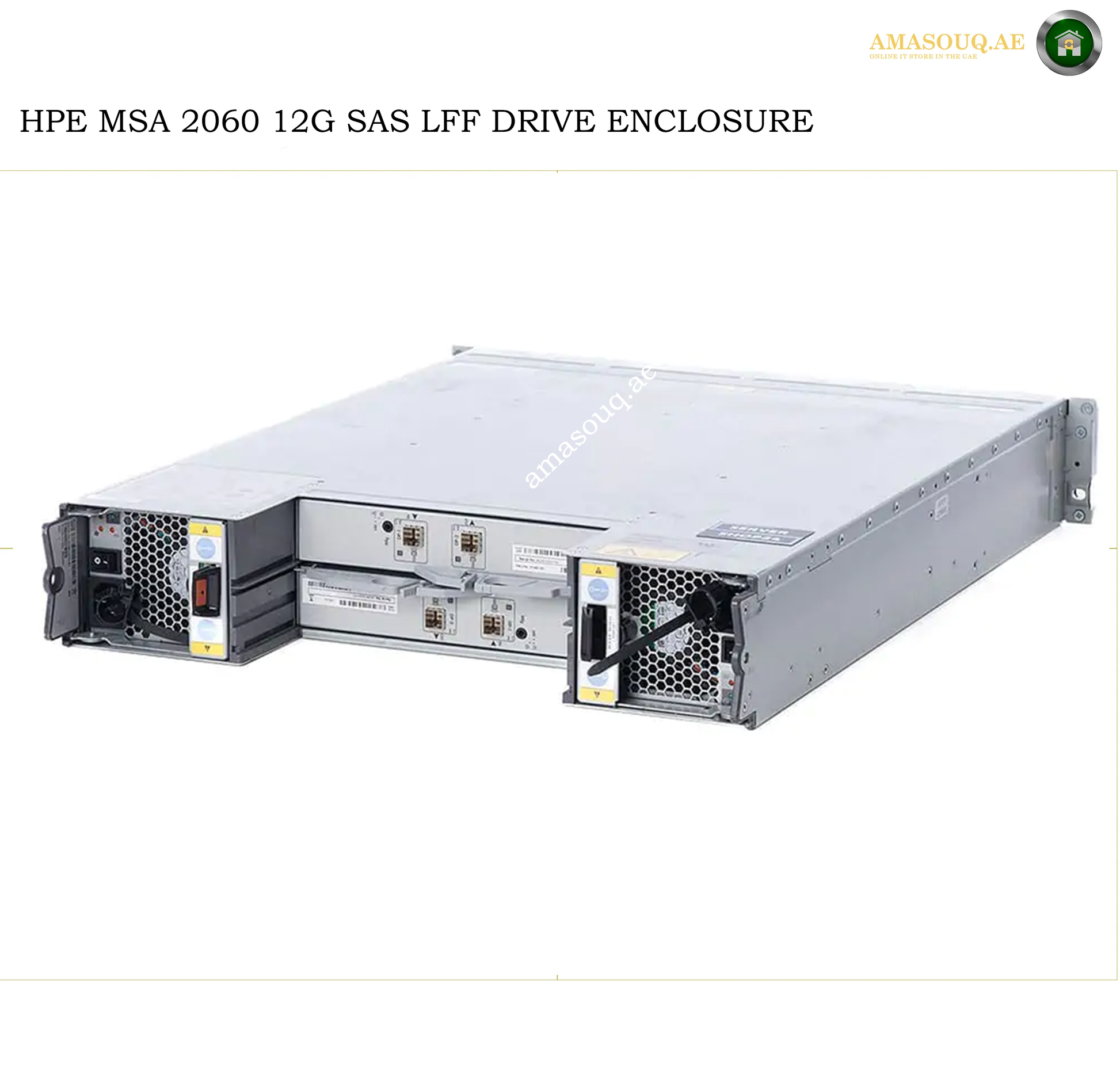

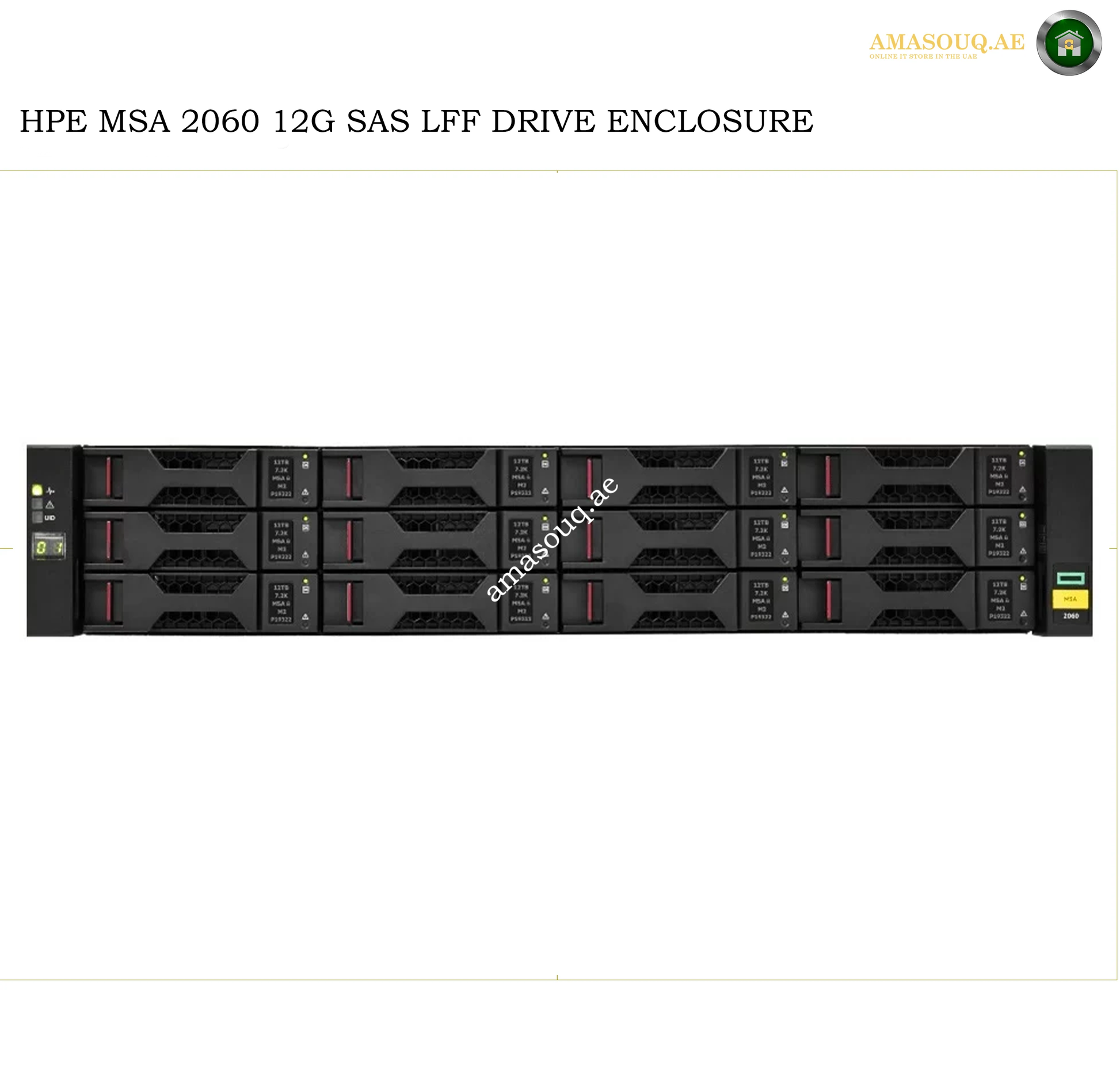

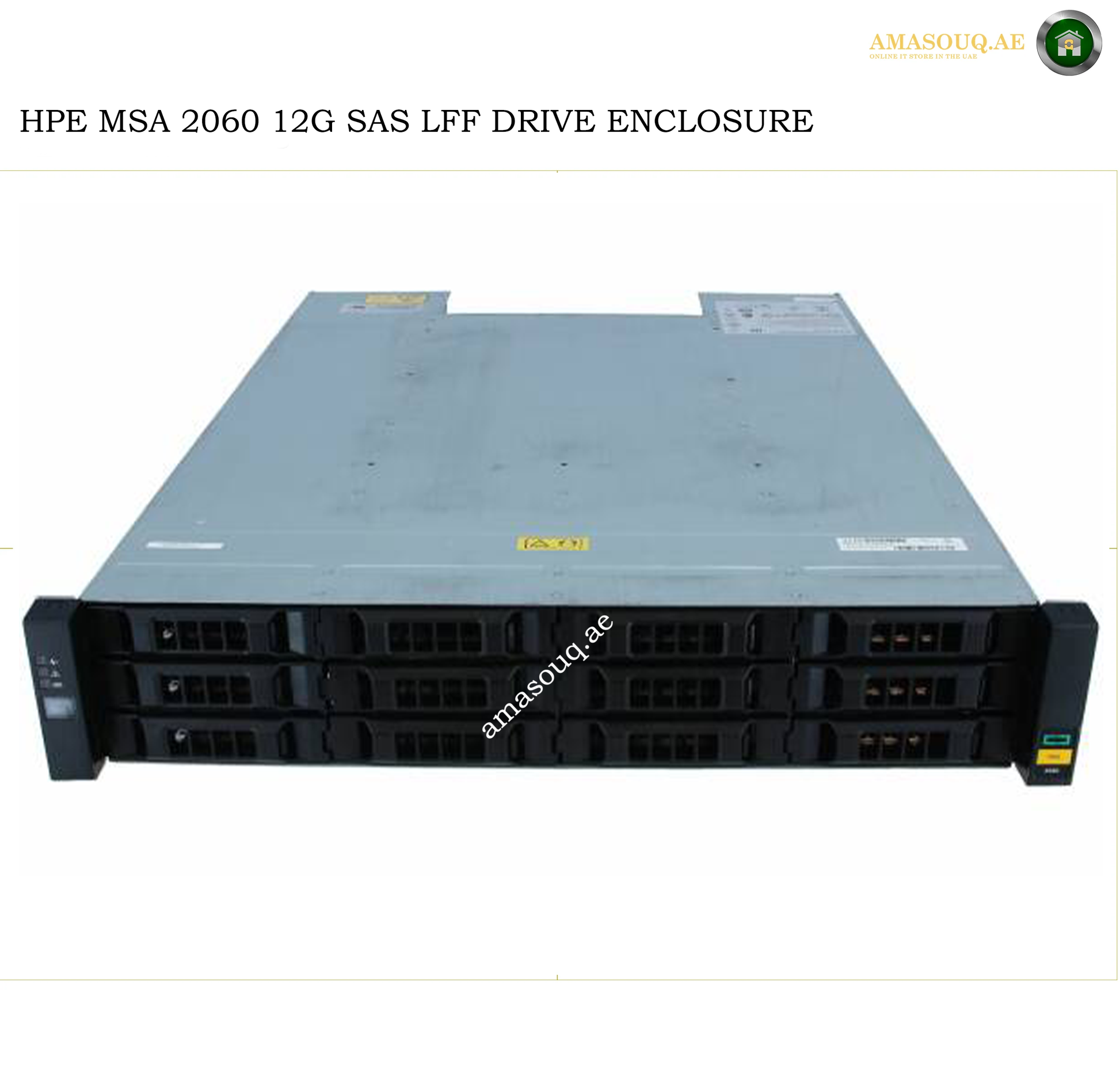

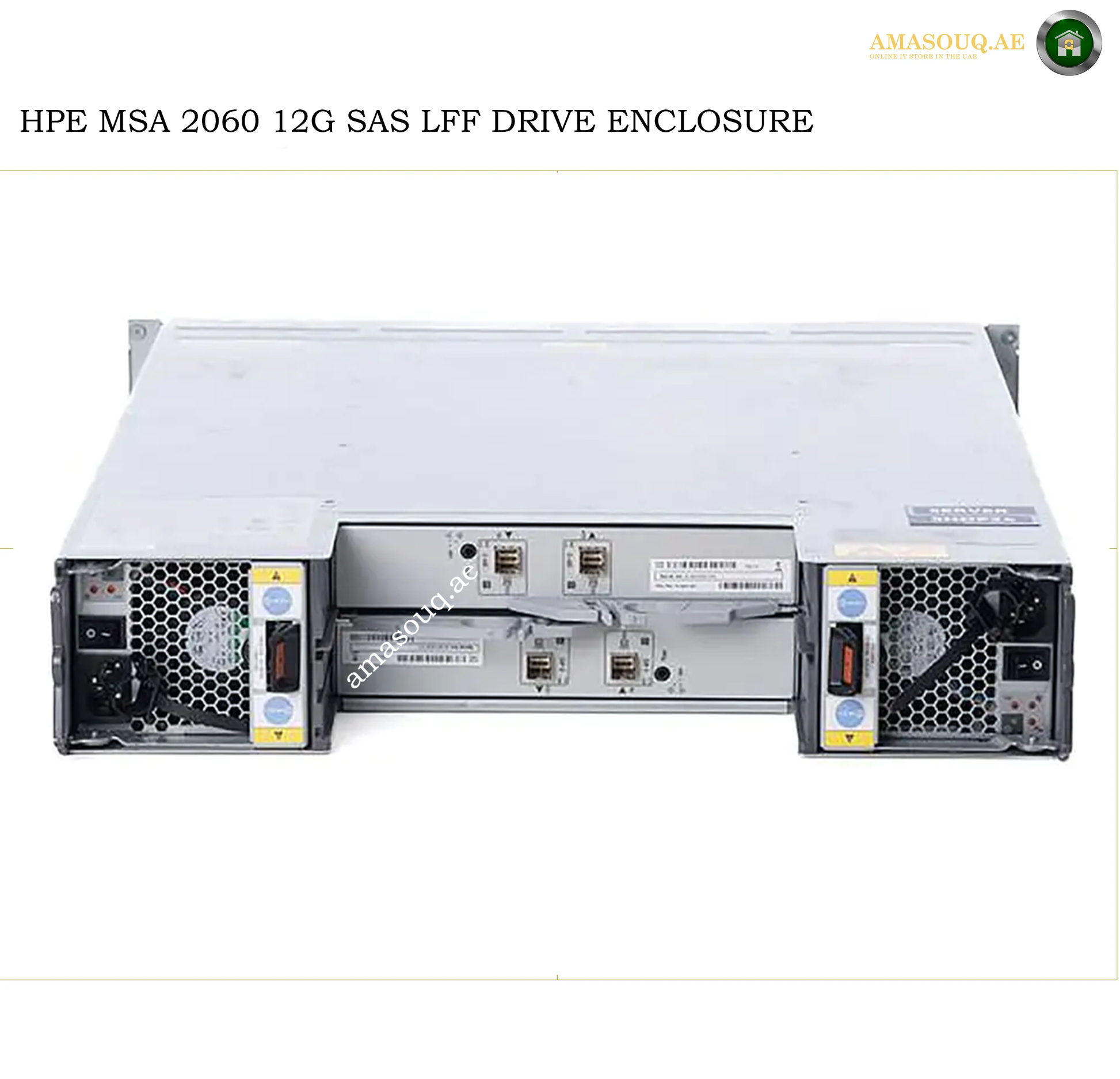

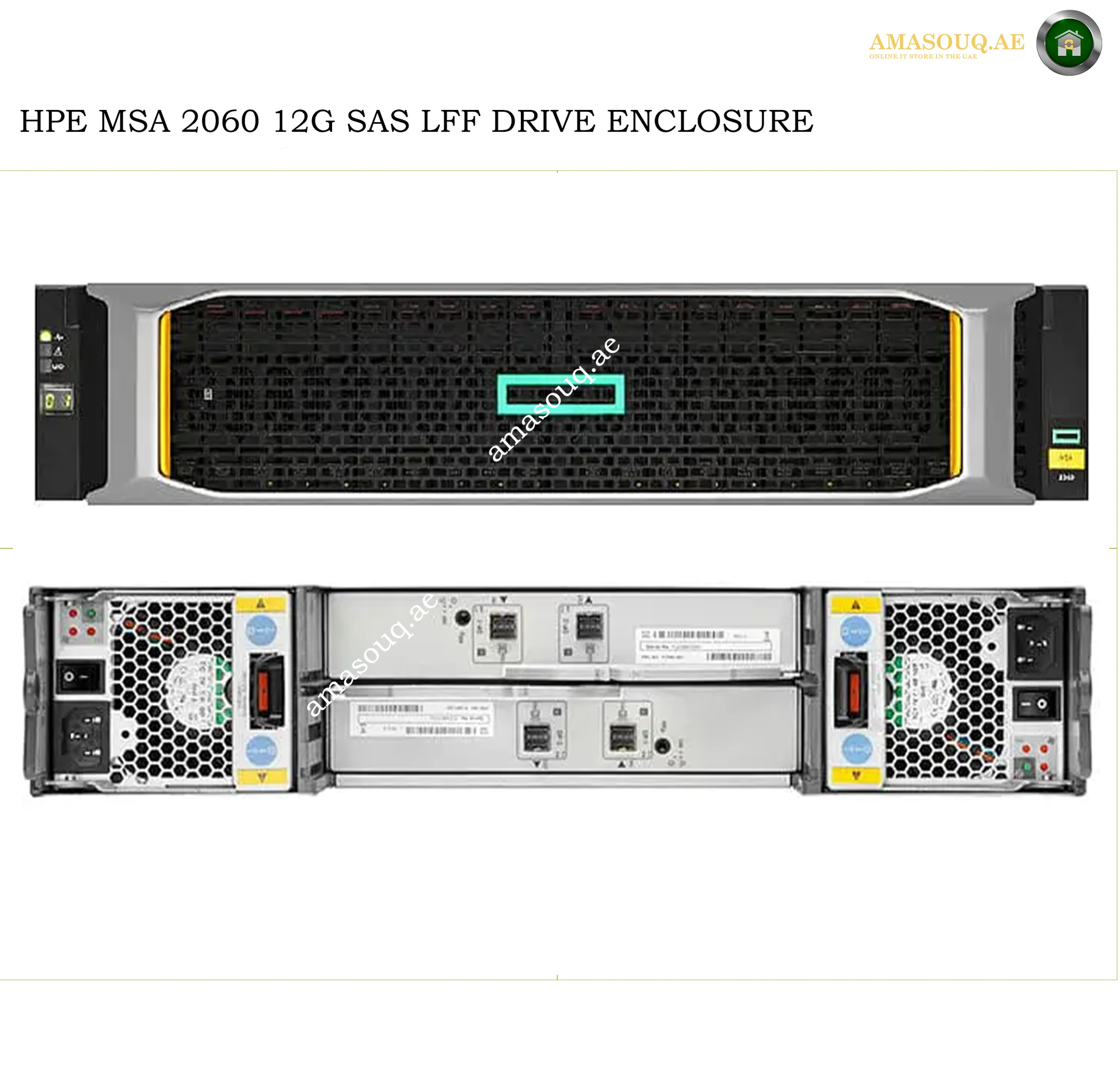

HPE MSA 2060 SAS 12G 2U 12-Disk LFF Drive Enclosure – R0Q39B, featuring 12 × 3.5-inch LFF drive bays, dual I/O modules, 12Gb SAS expansion connectivity, 94% efficient power supply, rack-mount hardware and Mini-SAS HD cables for scalable storage expansion
The HPE MSA 2060 R0Q39B is a 2U, 12-bay LFF drive expansion enclosure designed to add storage capacity to compatible HPE MSA storage systems. It uses 12Gb SAS expansion connectivity and supports 12 × 3.5-inch LFF drives. It is an expansion enclosure, not a standalone SAN storage array.
12 × 3.5-Inch LFF Drive Bays
It is designed for compatible dual-ported MSA 12Gb SSDs and SAS Midline HDDs. HPE lists LFF drive options including 7.2K SAS HDDs and LFF SSDs for the MSA 2060 platform.
supported MSA 2060 LFF capacities include:
6TB 7.2K SAS HDD
8TB 7.2K SAS HDD
12TB 7.2K SAS HDD
16TB 7.2K SAS HDD
20TB 7.2K SAS HDD
24TB 7.2K SAS HDD
1.92TB LFF SSD
12Gb SAS Expansion
The 12Gb SAS connection is used for expansion, connecting the enclosure to the MSA storage array or another enclosure in the supported cascade.
The preconfigured MSA 2060 LFF drive enclosure includes two I/O modules.
This provides the SAS expansion paths between the enclosure and the MSA storage system.
HPE also specifies that the enclosure includes two 0.5m Mini-SAS HD to Mini-SAS HD cables for connection to the MSA array expansion port or an existing drive-enclosure cascade port.
Expansion Capability
An MSA 2060 system supports up to nine additional drive enclosures.
Configuration
Maximum
SFF drives
240
LFF drives
120
Expansion enclosures
Up to 9
Drives per LFF enclosure
12
Drives per SFF enclosure
24
The maximum raw capacity for an all-LFF MSA 2060 configuration is listed by HPE as 2.88 PB.
Physical Dimensions
HPE lists the following physical specifications for the MSA 2060 enclosure:
Dimension
Specification
Height
3.5 in / 8.9 cm
Width – chassis only
17.5 in / 44.5 cm
Width – with bezel ear caps
19.0 in / 48.3 cm
Depth – chassis ear to controller latch
20.0 in / 50.8 cm
Depth – chassis ear to cable bend
26.4 in / 66.9 cm
Empty chassis weight
11 lb / 5 kg
Fully populated expansion enclosure
62 lb / 28 kg
R0Q39B ends in “B”, it belongs to HPE's newer B-series MSA 2060 configurations.
Included Accessories
1 × MSA 2060 2U LFF drive enclosure
12 × LFF drive bays
2 × I/O modules
1 × rack-mount kit
2 × 0.5m Mini-SAS HD to Mini-SAS HD cables
Power supplies
Comparison R0Q39B vs R0Q40B
Feature
R0Q39B
R0Q40B
Product
MSA 2060 Drive Enclosure
MSA 2060 Drive Enclosure
Form Factor
LFF
SFF
Drive Bays
12
24
Drive Size
3.5-inch
2.5-inch
Rack Height
2U
2U
Expansion Interface
12Gb SAS
12Gb SAS
I/O Modules
2
2
Primary advantage
Larger-capacity LFF drives
Higher drive density
Part Number
R0Q39B
R0Q40B
Compatibility With MSA 2062
HPE's MSA 2062 documentation also lists the MSA 2060 LFF Drive Enclosure R0Q39B as an expansion option for MSA 2062 SFF storage systems.
