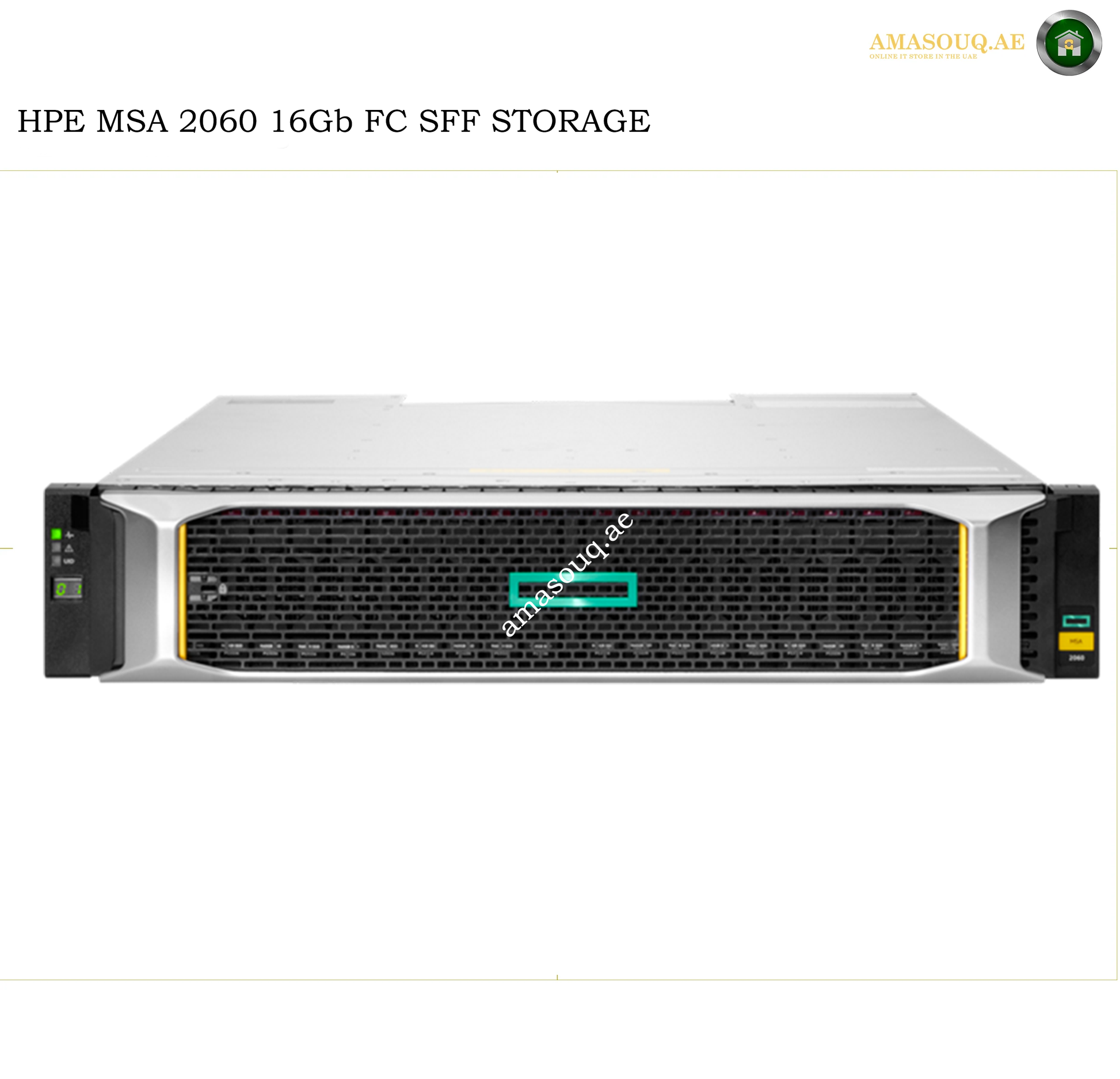

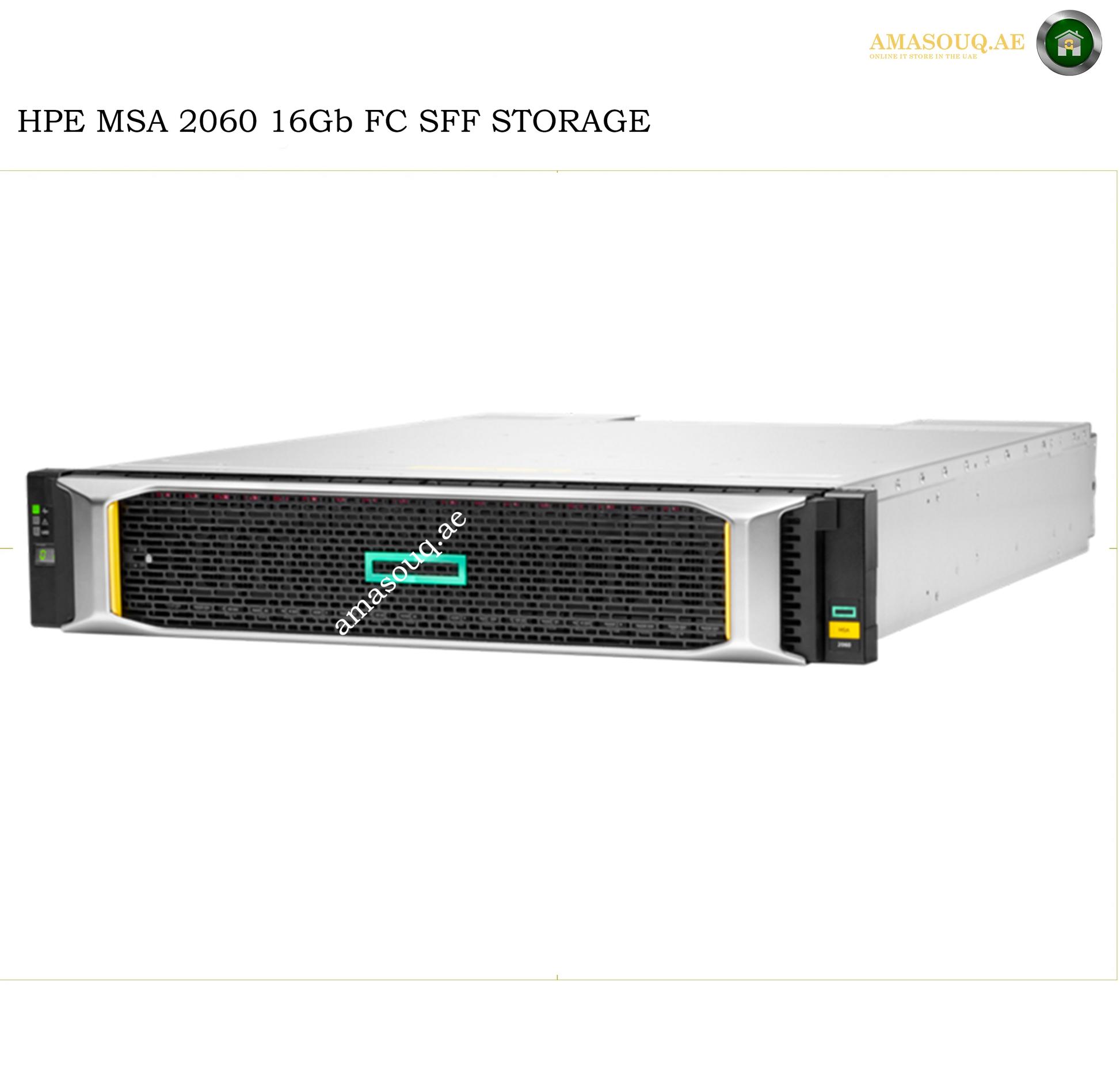

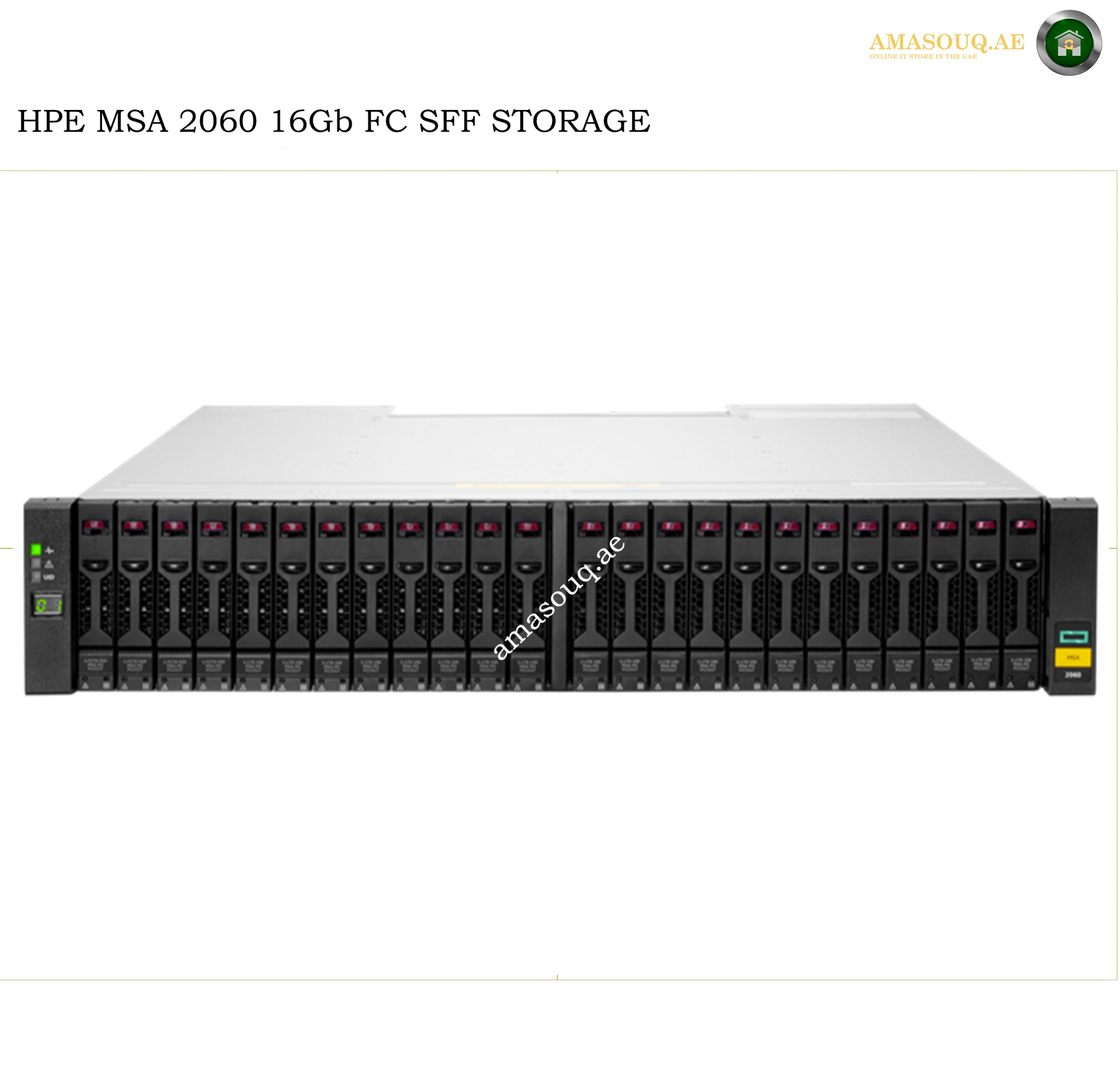

The HPE MSA 2060 16Gb Fibre Channel SFF Storage is a 2U Gen6 SAN storage array designed for Fibre Channel environments, virtualization, databases, and general enterprise storage. The SFF enclosure provides 24 × 2.5-inch drive bays and uses dual redundant MSA 2060 controllers.
Each controller has:
R0Q74B is a base storage array configuration.
C8R24B — HPE MSA 16Gb Short Wave Fibre Channel SFP+ 4-pack Transceiver
HPE specifies that the FC array can be configured with four or eight SFPs, with a minimum of one 4-pack required for FC models.
The MSA 2060 can be expanded using additional MSA 2060 drive enclosures.
R0Q40B — HPE MSA 2060 SAS 12G 2U 24-disk SFF Drive Enclosure
R0Q39B — HPE MSA 2060 SAS 12G 2U 12-disk LFF Drive Enclosure
The system supports up to 9 additional drive enclosures, and SFF and LFF enclosures can be mixed.
| Configuration | Maximum |
|---|---|
| SFF drives | 240 |
| LFF drives | 120 |
| SFF raw capacity | 7.37PB |
| LFF raw capacity | 2.88PB |
| Expansion enclosures | 9 |
HPE lists a maximum of 240 SFF or 120 LFF drives for the MSA 2060 platform.
MSA-DP+ is HPE's distributed-parity technology designed to provide efficient storage utilization and distributed spare capacity.
| Specification | Details |
|---|---|
| System Cache + Memory | 24GB |
| Maximum Read Cache | 8TB |
| Maximum Pools | 2 |
| Addressable Capacity per Pool | 4PiB |
| Maximum Volumes | 512 |
| Maximum Snapshots | 512 |
| Maximum Hosts | 512 |
| Maximum Initiators | 1,024 |
HPE specifies the MSA 2060 platform at up to 395,000 IOPS under HPE's test conditions.
This is a platform-level maximum and shouldn't be interpreted as guaranteed performance for every R0Q74B configuration. Actual performance depends on:

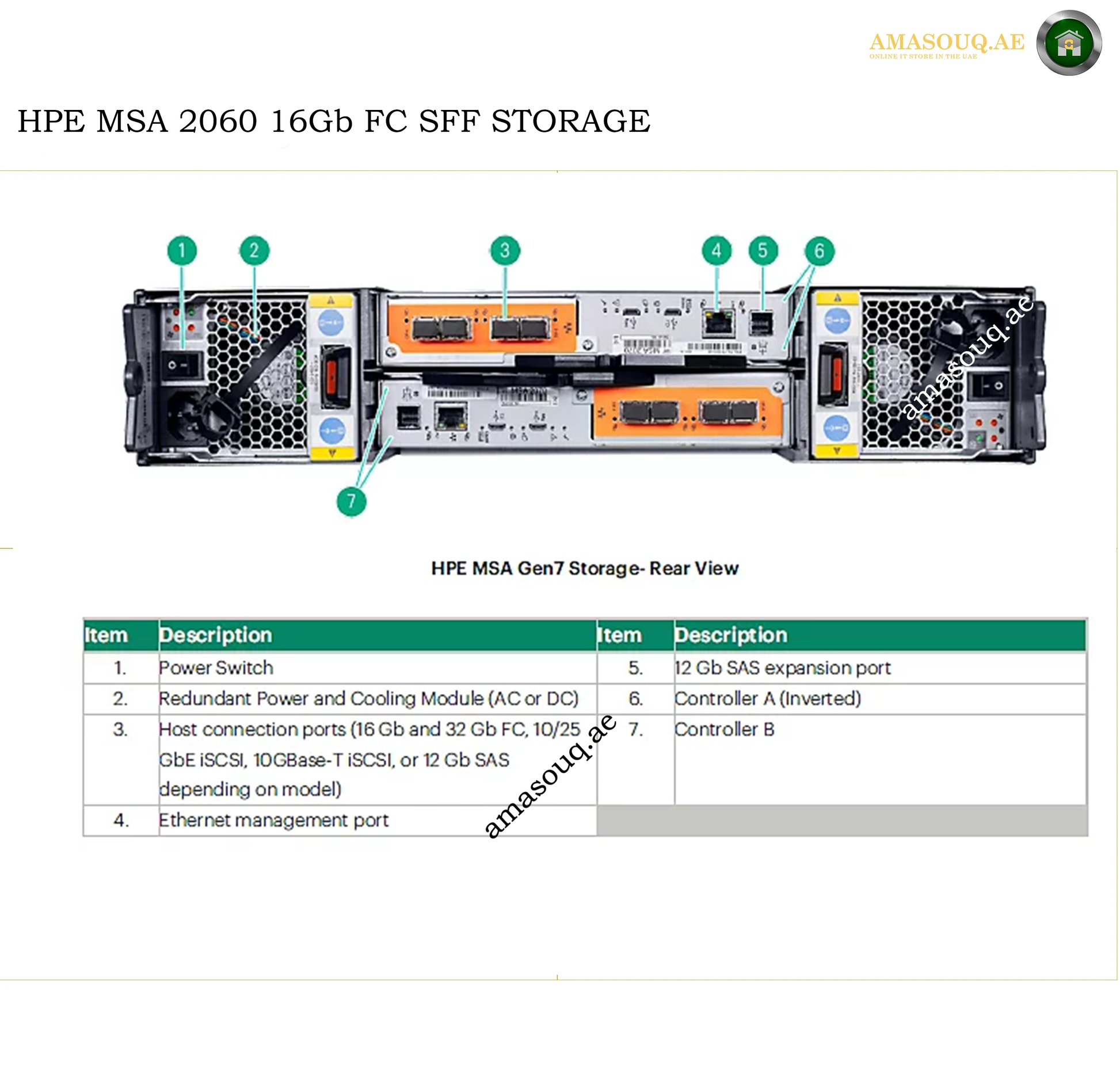

The MSA 2060 controllers provide SAS expansion ports for connecting additional MSA drive enclosures. This is not the same as the host interface.
Host: 16Gb Fibre Channel
Expansion: 12Gb SAS
| Field | Value |
|---|---|
| Rack Height | 2U |
| Height | 8.9 cm |
| Width | 44.5 cm |
| Depth | 50.8 cm |
| Weight | 5 kg |
| Drive Form Factor | 2.5-inch SFF |
| Drive Bays | 24 |
Included:
| Feature | R0Q73B | R0Q74B |
|---|---|---|
| Model | MSA 2060 | MSA 2060 |
| Interface | 16Gb FC | 16Gb FC |
| Controllers | 2 × 4-port | 2 × 4-port |
| Total FC Ports | 8 | 8 |
| Drive Form Factor | LFF | SFF |
| Main Drive Bays | 12 × 3.5" | 24 × 2.5" |
| Rack Height | 2U | 2U |
| Dimensions | 8.9 × 44.5 × 50.8 cm | 8.9 × 44.5 × 50.8 cm |
| Primary Advantage | Higher-capacity LFF drives | Higher drive density |
