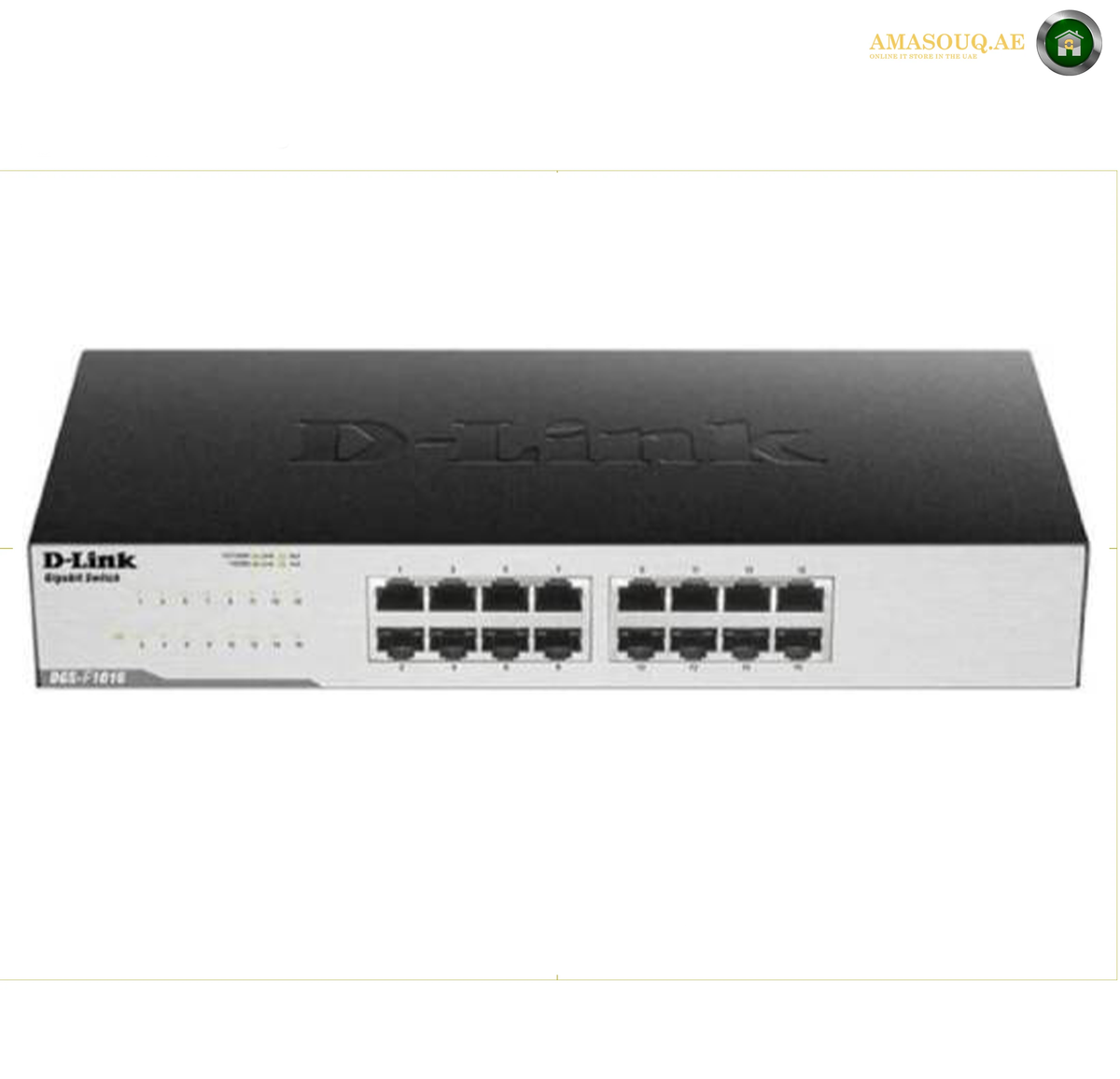

D-Link DGS-F1016 16-Port Gigabit Unmanaged Network Switch | DGS-F1016

D-Link DGS-F1016 16-Port Gigabit Unmanaged Network Switch | DGS-F1016

Expand your wired network with the D-Link DGS-F1016 16-Port Gigabit Switch, designed for reliable, high-speed connectivity in offices, small businesses, schools, and home networks. With 16 Gigabit Ethernet ports, 32 Gbps switching capacity, plug-and-play installation, and energy-efficient Ethernet technology, this unmanaged switch makes it easy to connect computers, printers, servers, IP cameras, and other network devices. Its fanless design provides quiet operation for everyday networking environments.

Key Features

• 🔌 16 Gigabit Ethernet Ports: Connect up to 16 wired devices.

• ⚡ Gigabit Network Speeds: Supports 10/100/1000 Mbps on every port.

• 🚀 32 Gbps Switching Capacity: Handles simultaneous local network traffic efficiently.

• 🖥️ Plug-and-Play Setup: No complex configuration required.

• 🔇 Fanless Design: Quiet operation for office and desktop environments.

• 🌿 Energy-Efficient Ethernet: IEEE 802.3az technology helps reduce power consumption.

• 🔄 Auto MDI/MDIX: Automatically detects the correct Ethernet cable connection.

• 📊 QoS Traffic Prioritization: IEEE 802.1p QoS helps prioritize time-sensitive traffic.

• 🛡️ IEEE 802.3x Flow Control: Helps manage traffic between connected devices.

• 🏢 Business Network Expansion: Suitable for offices, retail stores, classrooms, and small-to-medium businesses.

  Technical Features

  Specification	Details
  Brand	D-Link
  Model	DGS-F1016
  Product Type	Unmanaged Gigabit Ethernet Switch
  Number of Ports	16 × Gigabit Ethernet
  Port Type	RJ-45
  Ethernet Speeds	10/100/1000 Mbps
  Switching Capacity	32 Gbps
  Maximum Forwarding Rate	Up to 23.81 Mpps
  Switching Method	Store-and-forward
  MAC Address Table	8,000 entries
  Packet Buffer	512 KB
  Jumbo Frame Support	Up to 9,216 bytes
  Auto MDI/MDIX	Yes
  Auto-Negotiation	Yes
  Flow Control	IEEE 802.3x
  QoS	IEEE 802.1p
  QoS Queues	8
  Energy-Efficient Ethernet	IEEE 802.3az
  PoE Support	No
  Management Type	Unmanaged
  Cooling	Fanless
  Installation	Desktop / rackmount, depending on package and version
  Power Consumption	Approx. 9.5 W maximum, per cited specification
  Dimensions	Approx. 280 × 126 × 44 mm
  Manufacturer	D-Link
